When designing a building, the foundation plays a crucial role in ensuring stability. But what happens when you factor in building height, wind, and lateral forces? Whether it’s a low-rise building with a large footprint or a mid-rise building with a smaller footprint, understanding how these elements interact is key. In this article, we’ll dive into how the foundation design, building height, and wind loads impact the overall stability and performance of a building, and why precast concrete (especially cross walls and shear walls) plays a vital role in keeping structures secure.
Key Takeaways
- Low-rise buildings with larger footprints are more stable due to their broader base, but mid-rise buildings with smaller footprints, though taller, are generally better at resisting lateral forces.
- Precast concrete shear and cross walls enhance stability by effectively resisting wind and horizontal loads.
- The foundation depth for mid-rise buildings is often greater, providing better load distribution and resistance to wind forces.
- Properly designed foundations and precast concrete systems ensure a building can withstand significant wind and lateral forces, maintaining safety and durability.

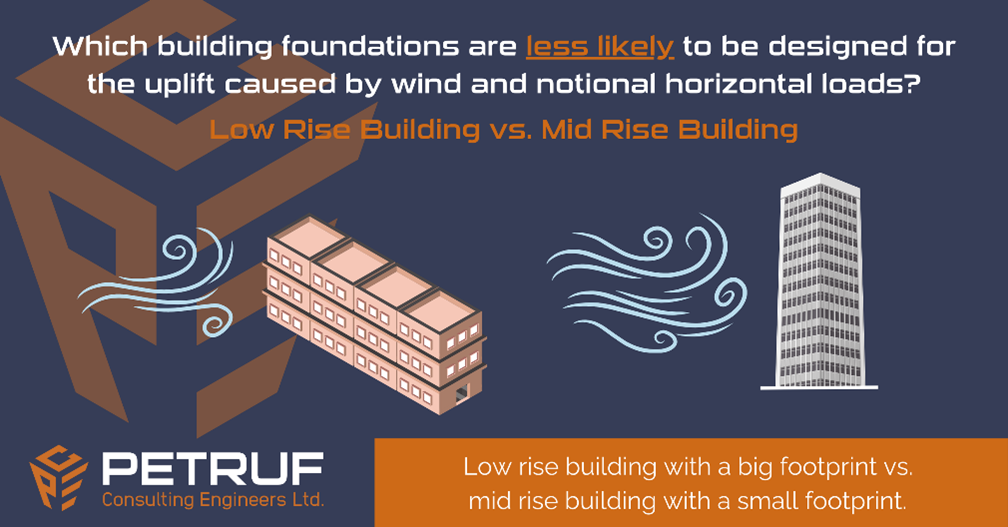

Low-Rise vs. Mid-Rise: How Building Height and Footprint Matter
The main difference between low-rise and mid-rise buildings lies in their height and footprint:
- Low-rise buildings: Typically 1-4 stories with a large footprint.
- Mid-rise buildings: Usually 5-12 stories with a smaller footprint.
The key difference in how these buildings handle wind and horizontal loads lies in their aspect ratio (height-to-width ratio). Mid-rise buildings with smaller footprints often have a higher aspect ratio, meaning they are taller relative to their base. This feature makes them more resistant to lateral forces, such as wind and seismic loads, compared to low-rise buildings with large footprints.
For low-rise buildings with large footprints, stability is achieved primarily by spreading the structure over a larger area. However, mid-rise buildings are more compact, meaning they need specialised design to maintain stability against wind and lateral forces.
Why? A taller building distributes mass more effectively across multiple floors, which increases the self-weight of the structure. This added mass creates a stronger restoring moment, counteracting forces that might try to push or overturn the building. Essentially, the greater the height and mass, the better the building can resist lateral forces and remain grounded.
The Role of Foundations in Stability
Foundations are essential for distributing the wind loads and ensuring stability. Here’s how they differ in low-rise vs. mid-rise buildings:
- Low-rise buildings typically don’t require deep foundations as much as mid-rise buildings.
- Mid-rise buildings require deeper foundations (e.g., piles or caissons) to anchor them to more stable soil layers. This extra depth helps distribute the loads more evenly, providing better resistance to uplift and overturning moments.
Additionally, the deeper foundations in mid-rise buildings can effectively handle the wind loads that act on taller structures. Wind forces often exert less pressure per unit area on taller buildings, spreading pressure more evenly across the structure. As a result, mid-rise buildings tend to experience more balanced load distribution, reducing the chance of concentrated forces that could lead to instability.
Precast Concrete: Cross Walls and Shear Walls for Stability
When it comes to structural systems, precast concrete is a game-changer. For mid-rise buildings, using cross walls and shear walls made of precast concrete provides significant advantages in terms of wind and horizontal load resistance.
Shear walls are vertical structural elements designed to resist lateral forces, such as those from wind or earthquakes. By distributing these forces across the building, shear walls help reduce the bending moments and base shears that might otherwise put stress on other parts of the structure. In fact, buildings with shear walls can reduce base shears by up to 50% compared to those without, according to research on high-rise building performance.
For buildings with weak soil or complex wind conditions, precast concrete shear walls are especially effective. These walls provide a stiff and robust structure capable of resisting not only wind but also seismic loads. Cross walls, placed perpendicular to shear walls, further enhance the stability, ensuring that the building remains grounded even under significant lateral stress.
Precast concrete is particularly beneficial because it can be prefabricated offsite, ensuring precision and quality while reducing construction time. Additionally, its strength and durability make it an ideal choice for ensuring a building can handle external forces without compromising safety.
The Bottom Line: Why Precast Concrete Matters
In summary, mid-rise buildings with smaller footprints are often more resistant to wind and lateral forces than low-rise buildings with larger footprints, due to their taller height and higher mass distribution. However, these buildings need strong foundations and advanced structural systems like shear walls to maximize their resistance to uplift and wind forces.
Precast concrete solutions, including cross walls and shear walls, provide the strength and stability needed to ensure that buildings can withstand these forces. The combination of deep foundations and reinforced concrete systems ensures that your building remains secure, even in the face of extreme wind or seismic conditions.
If you’re working on a project and need expert guidance on wind resistance or horizontal load performance, Petruf Consulting is here to help. Our team can assist in designing robust structural solutions that prioritize safety, durability, and performance.
