Precast concrete has revolutionized modern construction, offering unparalleled efficiency, quality control, and design flexibility that traditional cast-in-place methods simply cannot match. This construction technology involves casting concrete elements in controlled factory environments, curing them to optimal strength, and then transporting them to construction sites for rapid assembly.
What is Precast Concrete?
Precast concrete represents a fundamental shift from traditional construction methods, where concrete is cast in reusable molds or forms within controlled factory environments before being transported to construction sites. This manufacturing approach ensures
superior quality control compared to on-site casting, as key factors such as curing temperature, mix design, and formwork can be precisely monitored throughout the production process.
The controlled environment eliminates weather-related variables that often compromise the quality of cast-in-place concrete, resulting in components with consistent strength, durability, and dimensional accuracy.
The manufacturing process involves several critical stages, beginning with the production of reinforced cages and connections in specialized workshops. Once reinforcement is positioned within partly assembled molds, carefully specified concrete is placed using computer-controlled batching plants to ensure optimal mix consistency.
Types of Precast Concrete Elements
Hollow core slabs
Hollow core slabs represent one of the most efficient and widely used precast concrete elements in modern construction. These prestressed concrete components feature continuous hollow cores or voids running through their length, which reduce overall weight by up to 45% while maintaining exceptional structural integrity. Standard hollow core slabs are manufactured in nominal depths ranging from 150mm to 500mm, with typical widths of 1,200mm and span capabilities extending from 6 to 16 meters.
The hollow cores serve multiple functions beyond weight reduction, including thermal insulation improvement and accommodation of building services such as electrical conduits or HVAC ducting. These slabs offer excellent load-bearing capacity while requiring fewer supporting columns or beams, enabling architects to design larger open spaces. Hollow core slabs typically achieve minimum fire resistance of one hour and can be manufactured with compressive strengths reaching 41 MPa at 28 days.
Wall Panels

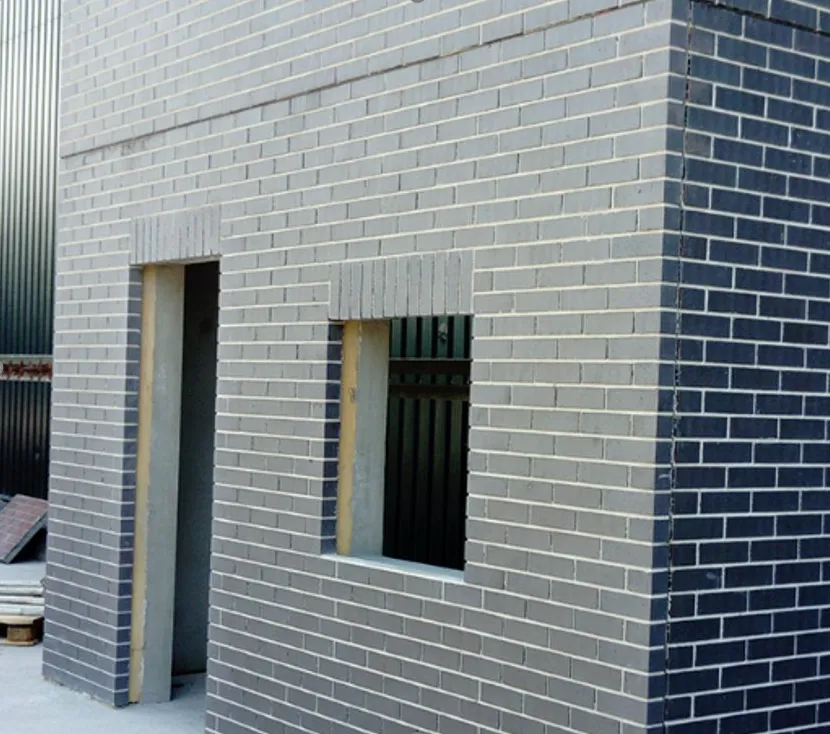

Precast wall panels offer remarkable versatility in both structural and architectural applications, serving as load-bearing elements, non-load-bearing partitions, shear walls, or decorative facade panels. These panels typically range from 100mm to 400mm in thickness and can span 3 to 6 meters, accommodating various structural requirements. Wall panels can be manufactured as solid concrete sections, hollow core configurations, or sandwich panels incorporating insulation cores for enhanced thermal performance.
Manufacturing wall panels involves creating detailed engineering drawings that consider load-bearing requirements, environmental conditions, and connection details before fabricating steel or durable material molds.
L-Beams and Specialized Structural Elements

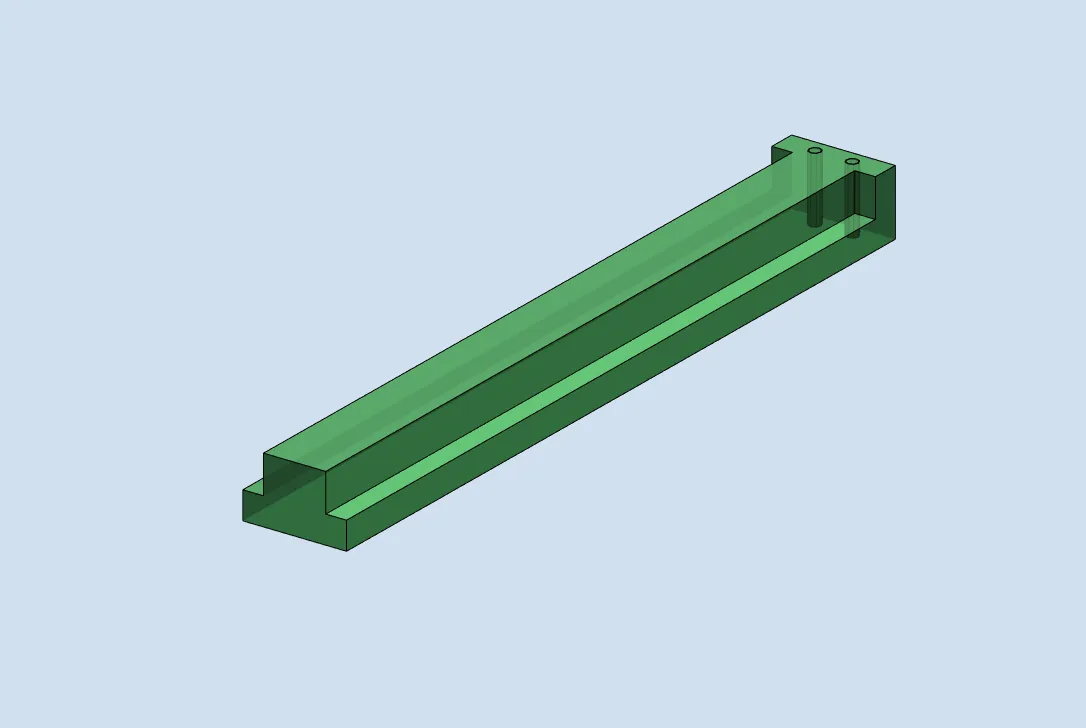

L-shaped beams, also known as ledge beams, are sophisticated precast elements typically positioned at building perimeters to support double-tee floor components while providing integrated barrier walls for parking structures. These beams range from 300mm to 800mm in thickness and can span 8 to 20 meters, offering exceptional structural efficiency for perimeter applications. The integrated ledge design eliminates the need for separate bearing elements, streamlining construction and reducing potential connection issues.
Double-tee beams represent the ultimate solution for long-span applications, with depths ranging from 400mm to 1,200mm and spanning capabilities extending up to 30 meters. These prestressed elements enable architects to design large, column-free spaces essential for parking garages, warehouses, and industrial facilities. The T-shaped configuration provides optimal structural efficiency by concentrating material where structural stresses are highest while minimizing dead load.
Columns and Vertical Support Elements
Precast columns serve as vertical structural elements transferring loads from beams, girders, and slabs to foundation systems. These components typically measure 300mm to 600mm in cross-sectional dimensions and can achieve heights up to 12 meters, accommodating various structural requirements. Columns can be manufactured in square, rectangular, or circular configurations depending on architectural preferences and load requirements.
Stairs, Landings, and Architectural Elements
Precast stair systems provide rapid installation solutions for vertical circulation needs, incorporating treads, risers, and sometimes landings in single manufactured units. These elements typically range from 150mm to 300mm in thickness and span up to 6 meters, offering consistent quality and dimensional accuracy that on-site construction cannot match. Precast stairs can be customized to meet specific architectural requirements while maintaining structural integrity and safety standards.
Twin wall panels
Twin wall panels are a specialized precast concrete solution that merges the speed and quality control of factory production with the structural continuity of in-situ concrete. A twin wall consists of two thin, reinforced precast concrete shells - typically 50–70 mm thick - held apart by lattice girders, creating a cavity between them. These panels are delivered to the site, erected in position, and then the cavity is filled with in-situ concrete, forming a monolithic structural wall.
Foundation elements
Foundation elements represent critical precast applications including isolated footings for shallow foundations, pocket footings for enhanced load distribution, and precast piles for deep foundation systems. These elements range from 200mm to 1000mm in thickness depending on load requirements and soil conditions. Precast piles, manufactured from prestressed concrete, offer high vertical load capacity and weather resistance, making them ideal for challenging foundation conditions.
Advantages and Disadvantages Analysis
A commonmisconceptionabout precast concrete is that transportation challenges and sizelimitationsare always significant disadvantages. In reality, for most standard construction projects, these factors can actually become distinct advantages—especially when the project is well-managed from the outset.
Larger precast components, for example, reduce the number of pieces that need to be installed, streamlining logistics and accelerating the build. In practical terms, what might take a full day of on-site work with traditional methods can often be completed in just 30 minutes using precast elements. This rapid installation not only shortens project timelines but also minimizes site disruption and labor costs.
With thoughtful planning - such as early coordination between design, manufacturing, and logistics teams - many of the typicalissues associated with transport and handling can be mitigated or even eliminated. Advances in lightweight concrete and optimized panel sizing now allow for larger elements to be transported within legal load limits, further reducing the number of deliveries and crane lifts required. In many cases, these efficiencies turn what could be perceived as a limitation into a genuine project advantage.
Precast concrete represents a transformative approach to modern construction, offering superior quality control, enhanced efficiency, and environmental benefits that traditional methods cannot match. The comprehensive range of precast elements - from hollow core slabs and wall panels to specialized L-beams, Twin walls and foundation components - provides solutions for virtually every construction challenge. While initial costs and transportation requirements present considerations*, the long-term benefits of reduced maintenance, enhanced durability, and construction speed typically justify the investment.
